IEEE 802.11 Architecture

Each computer, mobile, portable or fixed, is referred to as a station in 802.11 [Wireless Local Area Networks].

The difference between a portable and mobile station is that a portable station moves from point to point but is only used at a fixed point. Mobile stations access the LAN during movement.

When two or more stations come together to communicate with each other, they form a Basic Service Set (BSS). The minimum BSS consists of two stations. 802.11 LANs use the BSS as the standard building block.

A BSS that stands alone and is not connected to a base is called an Independent Basic Service Set (IBSS) or is referred to as an Ad-Hoc Network. An ad-hoc network is a network where stations communicate only peer to peer. There is no base and no one gives permission to talk. Mostly these networks are spontaneous and can be set up rapidly. Ad-Hoc or IBSS networks are characteristically limited both temporally and spatially.

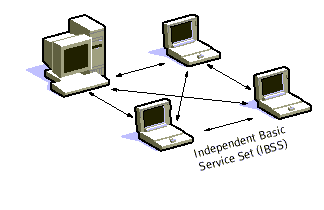

Fig 1: "Adhoc Mode"

When BSS's are interconnected the network becomes one with infrastructure. 802.11 infrastructure has several elements. Two or more BSS's are interconnected using a Distribution System or DS. This concept of DS increases network coverage. Each BSS becomes a component of an extended, larger network. Entry to the DS is accomplished with the use of Access Points (AP). An access point is a station, thus addressable. So, data moves between the BSS and the DS with the help of these access points.

Creating large and complex networks using BSS's and DS's leads us to the next level of hierarchy, the Extended Service Set or ESS. The beauty of the ESS is the entire network looks like an independent basic service set to the Logical Link Control layer (LLC). This means that stations within the ESS can communicate or even move between BSS′s transparently to the LLC.

Fig 2: Infrastructure Mode

One of the requirements of IEEE 802.11 is that it can be used with existing wired networks. 802.11 solved this challenge with the use of a Portal. A portal is the logical integration between wired LANs and 802.11. It also can serve as the access point to the DS. All data going to an 802.11 LAN from an 802.X LAN must pass through a portal. It thus functions as bridge between wired and wireless.

The implementation of the DS is not specified by 802.11. Therefore, a distribution system may be created from existing or new technologies. A point-to-point bridge connecting LANs in two separate buildings could become a DS.

While the implementation for the DS is not specified, 802.11 does specify the services, which the DS must support. Services are divided into two sections

  1. Station Services (SS)
  2. Distribution System Services (DSS).

There are five services provided by the DSS

  1. Association
  2. Reassociation
  3. Disassociation
  4. Distribution
  5. Integration

The first three services deal with station mobility. If a station is moving within its own BSS or is not moving, the stations mobility is termed No-transition. If a station moves between BSS's within the same ESS, its mobility is termed BSS-transition. If the station moves between BSS's of differing ESS's it is ESS transition. A station must affiliate itself with the BSS infrastructure if it wants to use the LAN. This is done by Associating itself with an access point. Associations are dynamic in nature because stations move, turn on or turn off. A station can only be associated with one AP. This ensures that the DS always knows where the station is.

Association supports no-transition mobility but is not enough to support BSS-transition. Enter Reassociation. This service allows the station to switch its association from one AP to another. Both association and reassociation are initiated by the station. Disassociation is when the association between the station and the AP is terminated. This can be initiated by either party. A disassociated station cannot send or receive data. ESS-transition are not supported. A station can move to a new ESS but will have to reinitiate connections.

Distribution and Integration are the remaining DSS's. Distribution is simply getting the data from the sender to the intended receiver. The message is sent to the local AP (input AP), then distributed through the DS to the AP (output AP) that the recipient is associated with. If the sender and receiver are in the same BSS, the input and out AP's are the same. So the distribution service is logically invoked whether the data is going through the DS or not. Integration is when the output AP is a portal. Thus, 802.x LANs are integrated into the 802.11 DS.

Station services are:

  1. Authentication
  2. Deauthentication
  3. Privacy
  4. MAC Service Data Unit (MSDU) Delivery.

With a wireless system, the medium is not exactly bounded as with a wired system. In order to control access to the network, stations must first establish their identity. This is much like trying to enter a radio net in the military.

Before you are acknowledged and allowed to converse, you must first pass a series of tests to ensure that you are who you say you are. That is really all authentication is. Once a station has been authenticated, it may then associate itself. The authentication relationship may be between two stations inside an IBSS or to the AP of the BSS. Authentication outside of the BSS does not take place.

There are two types of authentication services offered by 802.11. The first is Open System Authentication. This means that anyone who attempts to authenticate will receive authentication. The second type is Shared Key Authentication. In order to become authenticated the users must be in possession of a shared secret. The shared secret is implemented with the use of the Wired Equivalent Privacy (WEP) privacy algorithm. The shared secret is delivered to all stations ahead of time in some secure method (such as someone walking around and loading the secret onto each station).

Deauthentication is when either the station or AP wishes to terminate a stations authentication. When this happens the station is automatically disassociated. Privacy is an encryption algorithm, which is used so that other 802.11 users cannot eavesdrop on your LAN traffic. IEEE 802.11 specifies Wired Equivalent Privacy (WEP) as an optional algorithm to satisfy privacy. If WEP is not used then stations are "in the clear" or "in the red", meaning that their traffic is not encrypted. Data transmitted in the clear are called plaintext. Data transmissions, which are encrypted, are called ciphertext. All stations start "in the red" until they are authenticated. MSDU delivery ensures that the information in the MAC service data unit is delivered between the medium access control service access points.

The bottom line is this, authentication is basically a network wide password. Privacy is whether or not encryption is used. Wired Equivalent Privacy is used to protect authorized stations from eavesdroppers. WEP is reasonably strong. The algorithm can be broken in time. The relationship between breaking the algorithm is directly related to the length of time that a key is in use. So, WEP allows for changing of the key to prevent brute force attack of the algorithm. WEP can be implemented in hardware or in software. One reason that WEP is optional is because encryption may not be exported from the United States. This allows 802.11 to be a standard outside the U.S. albeit without the encryption.
